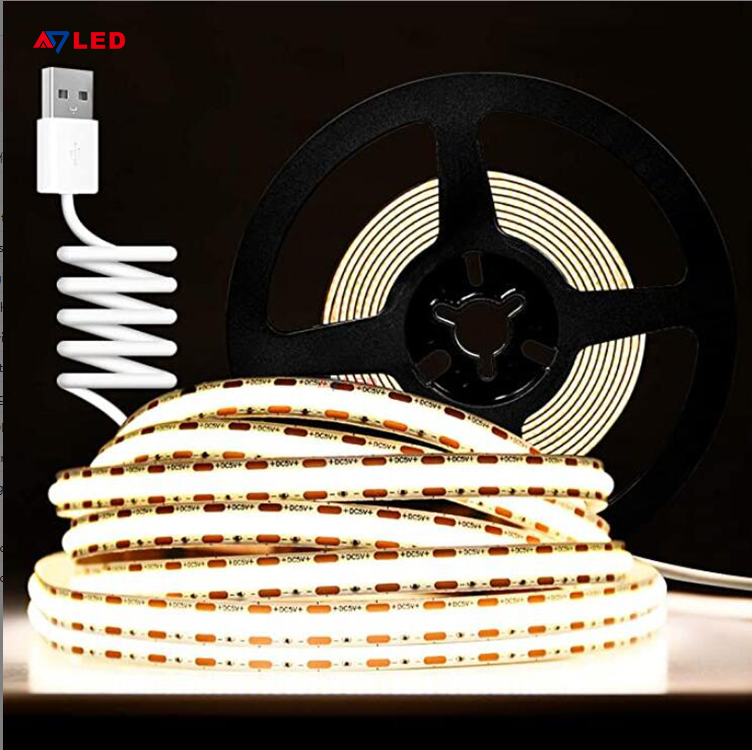

DC5V Input Double layer 2oz PCB 320led/m COB Led Strip Light IP20/IP67 Rated With 3000K Color Temperature
Description
Our 5V USB interface COB 320leds light strip has Chip-on-board design, more chips on PCB reaches a more even and uniform lighting effects. 320 lamp beads per meter, each 12.5MM can be cut, which can be convenient for various DIYs. in the location you want to use. High CRI, its CRI is as high as 90+, which can bring a certain freshness to the lighting, making your food or objects clearer and restoring their original appearance. At the same time, it also brings comfortable lighting to your bedroom, study room, and living room.
Features
Chip-on-board design, more chips on PCB reaches a more even and uniformlighting effects.

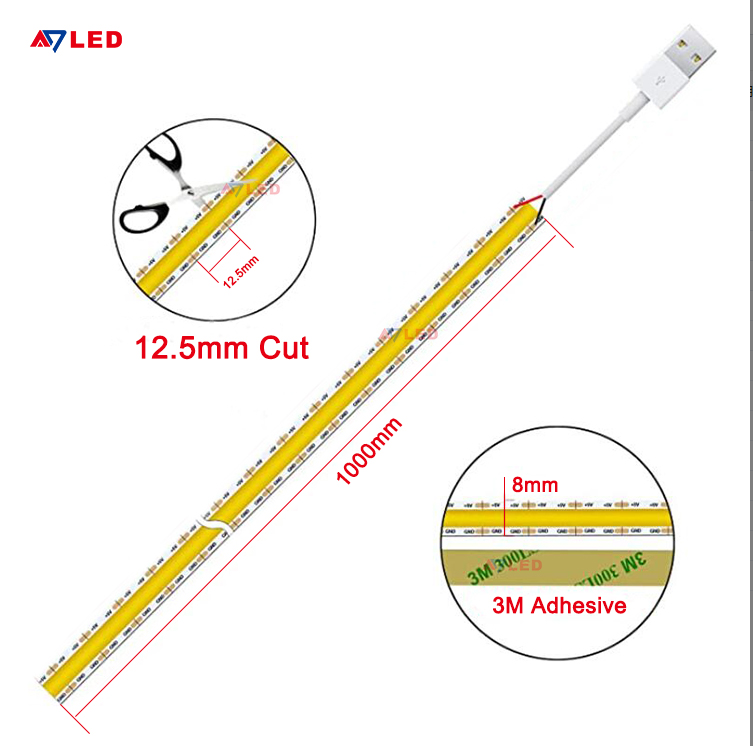

Up to 320 chips on single meter, 3.125mm distance between chips.
Customized 3V input, easy to power with button cell battery.
Double layer 2oz PCB, balancing the voltage dropping, heat dissipation and flexibility

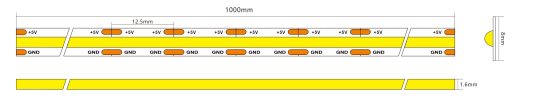

Dimensions

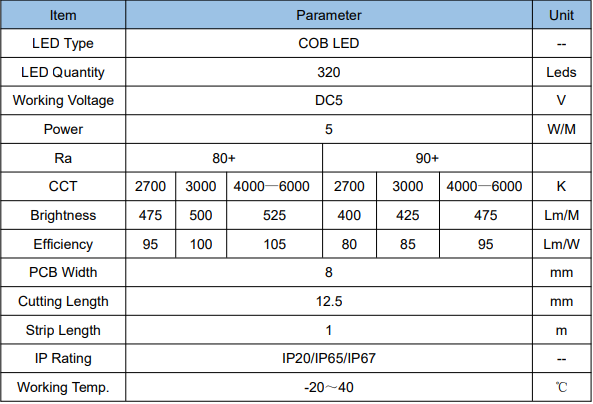

Technical parameters
Curve
The above curve based on 30 minutes testing data. The Temp. changes after powering within30minutes.
The x-axis indicates the minutes from 1 minutes to 30 minutes.
The y-axis indicates the changes of temperatures in Glue, PCB and Room
Installation on Ways
The max running length is 2 meters, for over 2 meters please connect in parallel.
Make sure of the total watts of COB Strip lights is less than 80% of the power supply's .
Match the polarities according to the mark ('+' and '-') in the PCB while connecting.
Applications
USB-Powered Long-Life LED Strip , Powered by any devices with output 5VUSBport, such as TV,computer, desktop, laptop, tablet, tab, etc. DIY decoration lighting.
